Developing a Terrestrial Dynamical Core for E3SM

class: center, middle, inverse, title-slide

# Developing a Terrestrial Dynamical Core for E3SM
### Jed Brown, <code>jed.brown@colorado.edu</code>
### Multicore-9, 2019-09-26

---

.pull-left-33[
![E3SM Logo](https://esgf-node.llnl.gov/site_media/logos/E3SM_Logo_150px.png)
* Water cycle modeling is critical for E3SM
* Current subsurface flow is 1D
]

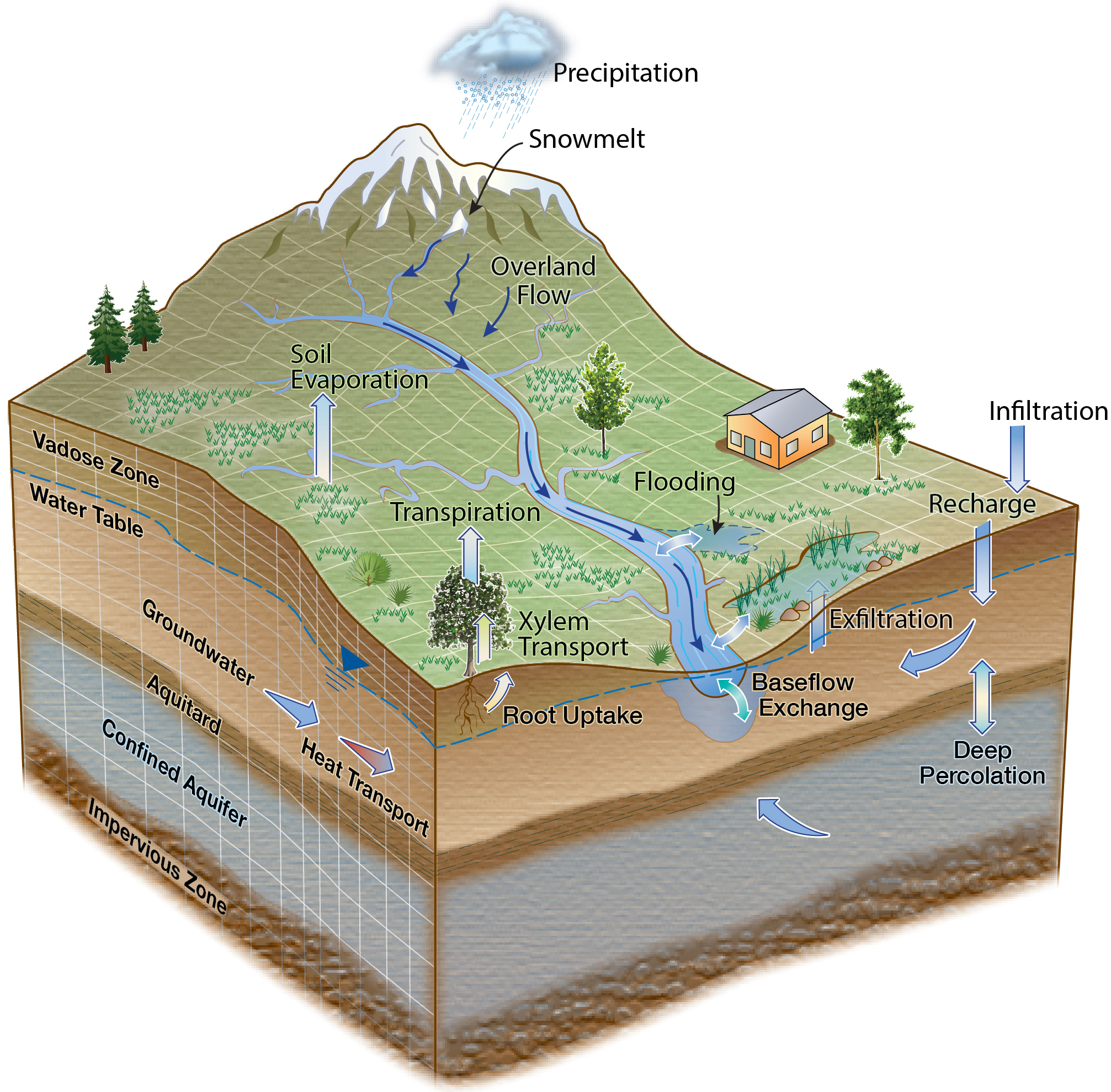

.pull-right-66[![TDycore schematic](figures/tdycore/tdycore-schematic.jpg)]

* TDycore SciDAC project: extend to global 3D
* Composable software

---
# TDycore requirements

* Solve 3D variably saturated Richards Equation
* Implicit thermal-hydrology (includes permafrost)
* Portable, extensible, fun to experiment with

* Accurate flow on distorted grids
* High-contrast/anistropic coefficients
  - anisotropic tensor coefficients
* Very high aspect ratio elements
* Time accurate, Quasi-steady/spinup
* Data assimilation, param estimation
* Verification & Validation

---
# Simplified model: Darcy flow

## Strong form: find `$\mathbf u,p$` such that
`\begin{align}
  \mathbf u &= -\kappa \nabla p \\
  \nabla \cdot \mathbf u &= f \\
\end{align}`
subject to pressure `$p = g_D$` and/or flux `$\mathbf u \cdot \mathbf n = g_N$` boundary conditions.

* Mixed finite elements
  - `$BDM_1$`, Wheeler-Yotov, Arbogast-Correa
* Multi-point flux finite volume
  - MPFA-O: Cell-centered with reconstruction

---
# Mixed FEM: `$BDM_1$`

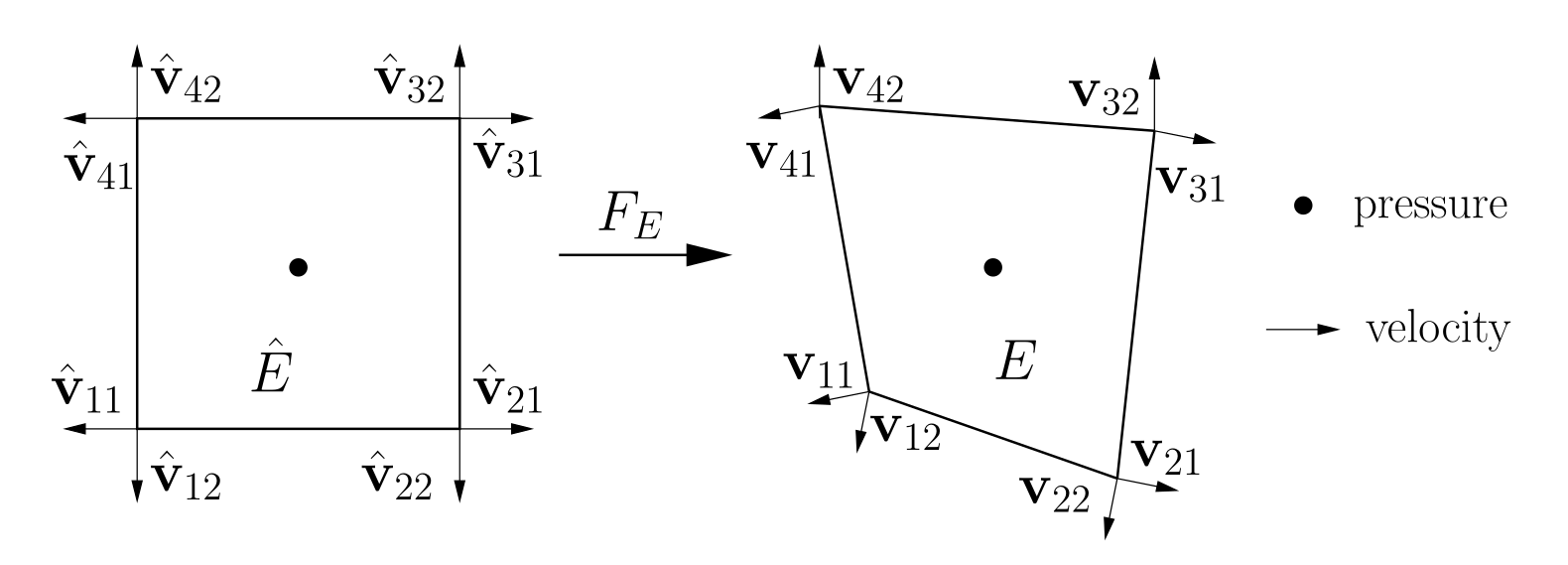

![Wheeler Yotov (2016)](figures/tdycore/wheeler-yotov-bdm1.png)

\begin{gather} \begin{bmatrix}
  M & B^T \\\\
  B & 0
  \end{bmatrix}
  \begin{bmatrix}
  \mathbf u\\\\ p
  \end{bmatrix} =
  \begin{bmatrix}
  0 \\\\ f
  \end{bmatrix} \\\\
 M \sim \int \mathbf v \cdot \kappa^{-1} \mathbf u, \quad
  B \sim \int q \nabla\cdot \mathbf u
  \end{gather}

---
# BDDC for `$BDM_1$`
.pull-left[
![](figures/tdycore/zampini-tu-bddc-bdm1-crop.png)

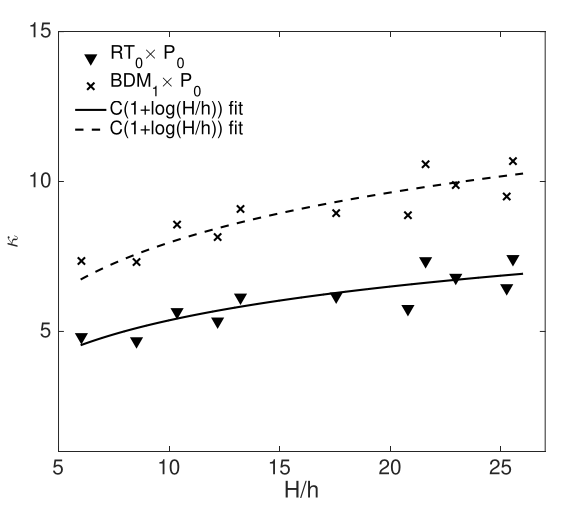

Zampini and Tu (2017): robustness to coarsening rate
]
.pull-right[
* A priori convergence rate
  - *not* grid complexity
* Rapid coarsening
* Solve subdomain problems
  - almost-Neumann
  - Dirichlet

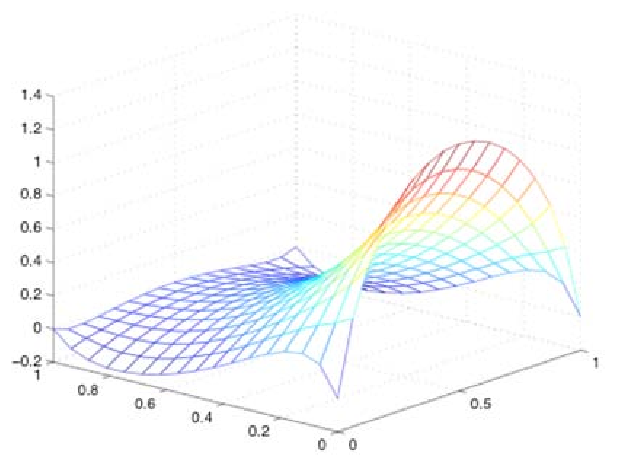

![](figures/MandelSousedikBDDCCoarseBasis.png)
]

---
# [Flow123d](https://flow123d.github.io/): transport in fractured media

.center[<video
src="https://flow123d.github.io/gallery/videos/test2d.ogv" type="video/ogg" autoplay="true" loop="true">Flow 123d video</video>]

* Jan Brezina and colleagues at TU Liberec
* Based on PETSc solvers

---
# Multigrid for `$BDM_1$`

.pull-left[
## Monolithic methods
* Coarsen mixed formulation
* Complicated implementation
* Overlapping smoother updates
* Hard to achieve high performance
]
.pull-right[
## Split methods
$$ P^{-1} = \begin{bmatrix}
  M & B^T \\\\
  & \hat S
\end{bmatrix}^{-1}
$$
With multigrid for
$$ \hat S \approx \underbrace{S = B M^{-1} B^T}_{\text{dense!}} $$
SPD, Laplacian-like
]

---
# `$BDM_1$` spaces

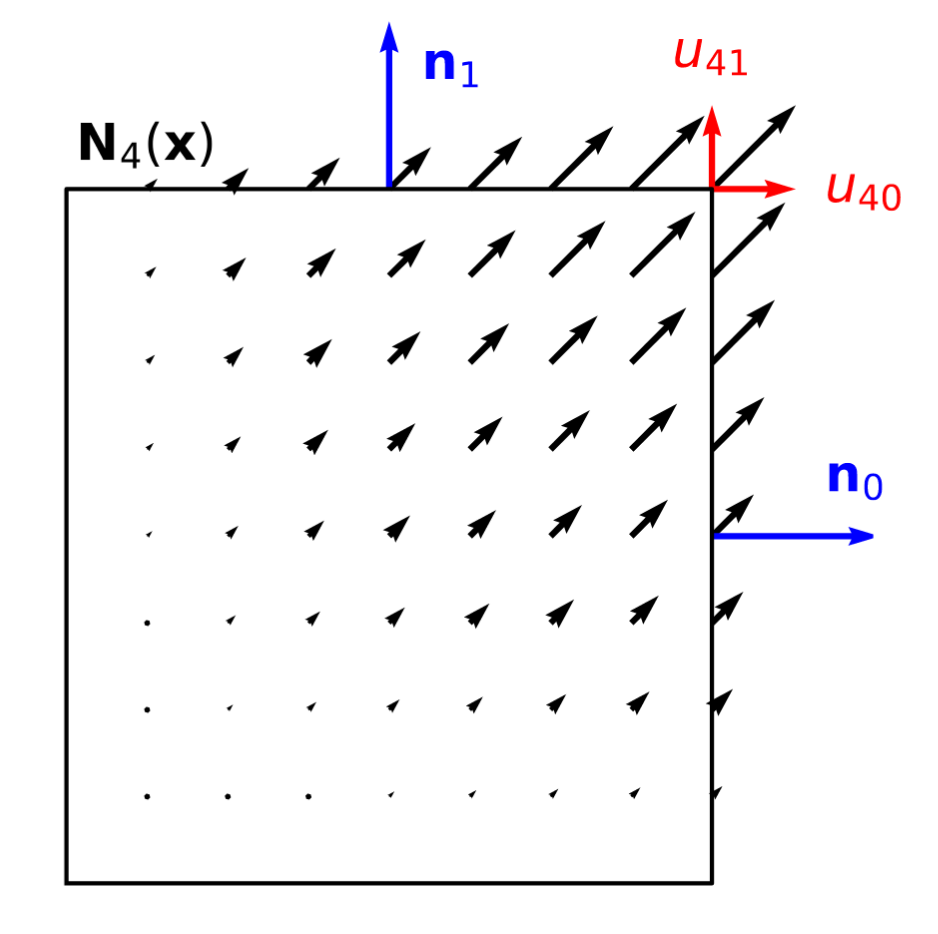

.pull-left[![](figures/tdycore/collier-bdm1.png)]

.pull-right[
### Collocated quadrature: block-diagonal `$M_{WY}$`
$$ \begin{bmatrix}
  M_{WY} & B^T \\\\
  B & 0
\end{bmatrix}  $$
]

---
# Wheeler and Yotov (2006)

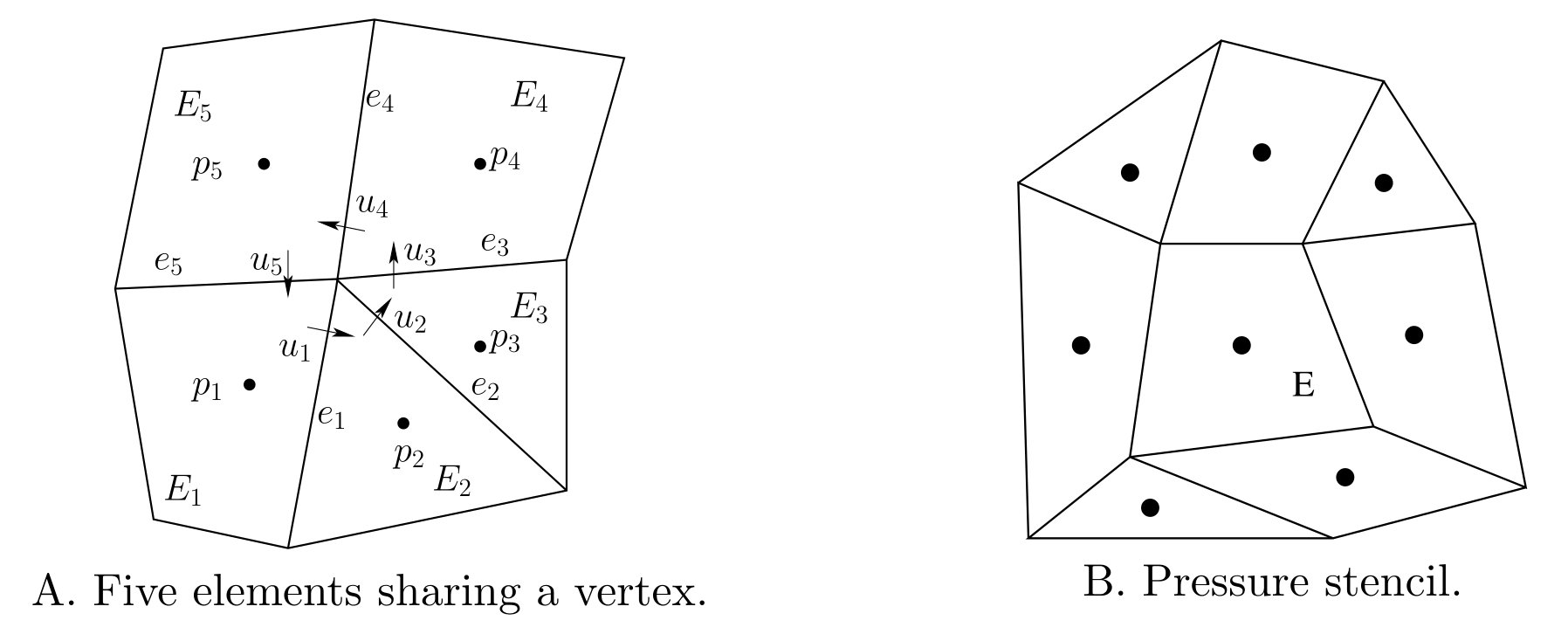

![:scale 95%](figures/tdycore/wheeler-yotov-stencil.png)

* `$M_{WY}$` is block diagonal; Schur complement is sparse

$$ S = B M^{-1} B^T $$

---
# Wheeler-Yotov stencils

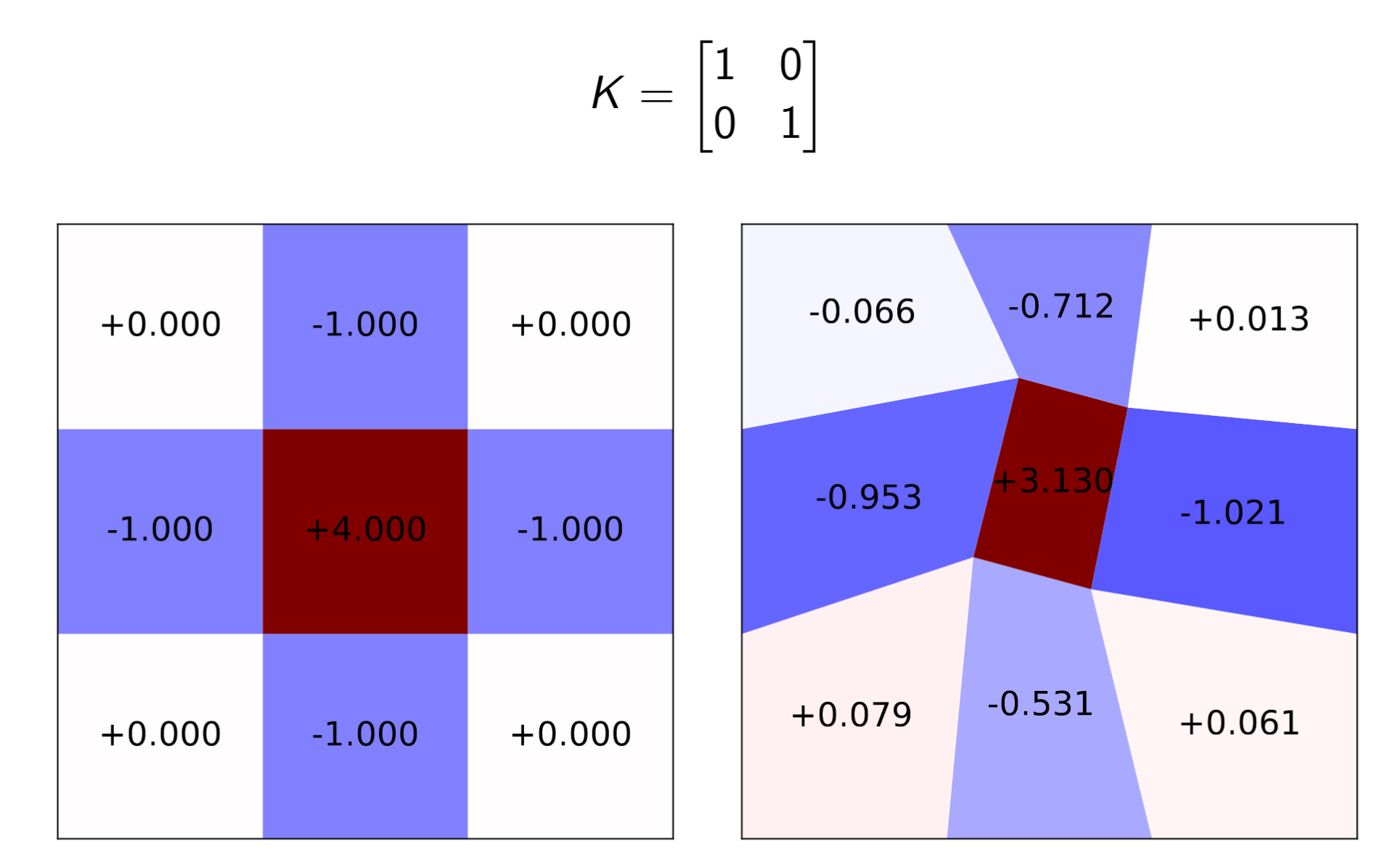

![:scale 100%](figures/tdycore/collier-wy-diagonal.png)

---
# Wheeler-Yotov stencils

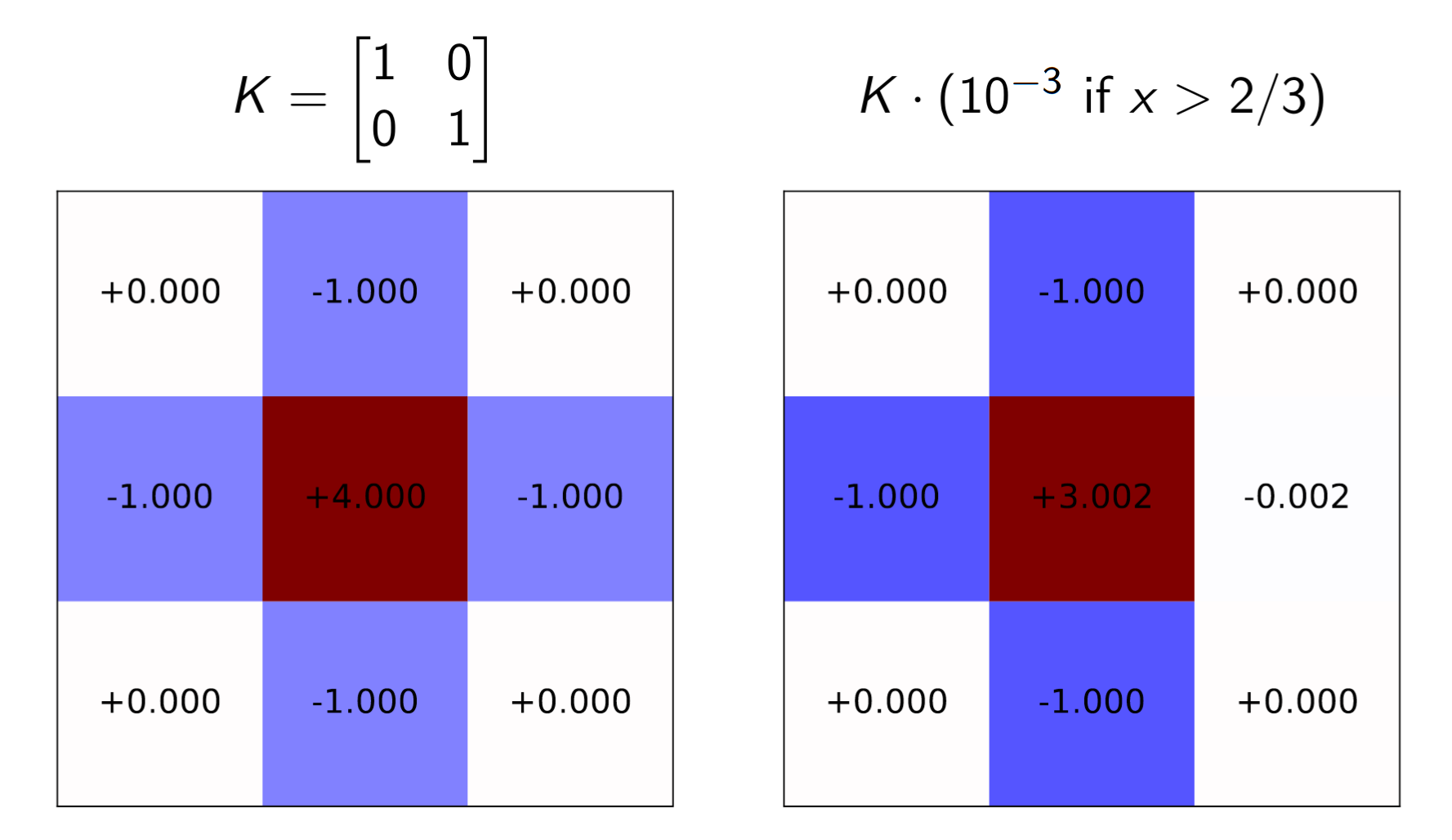

![:scale 100%](figures/tdycore/collier-wy-jump.png)

---
# Wheeler-Yotov solvers

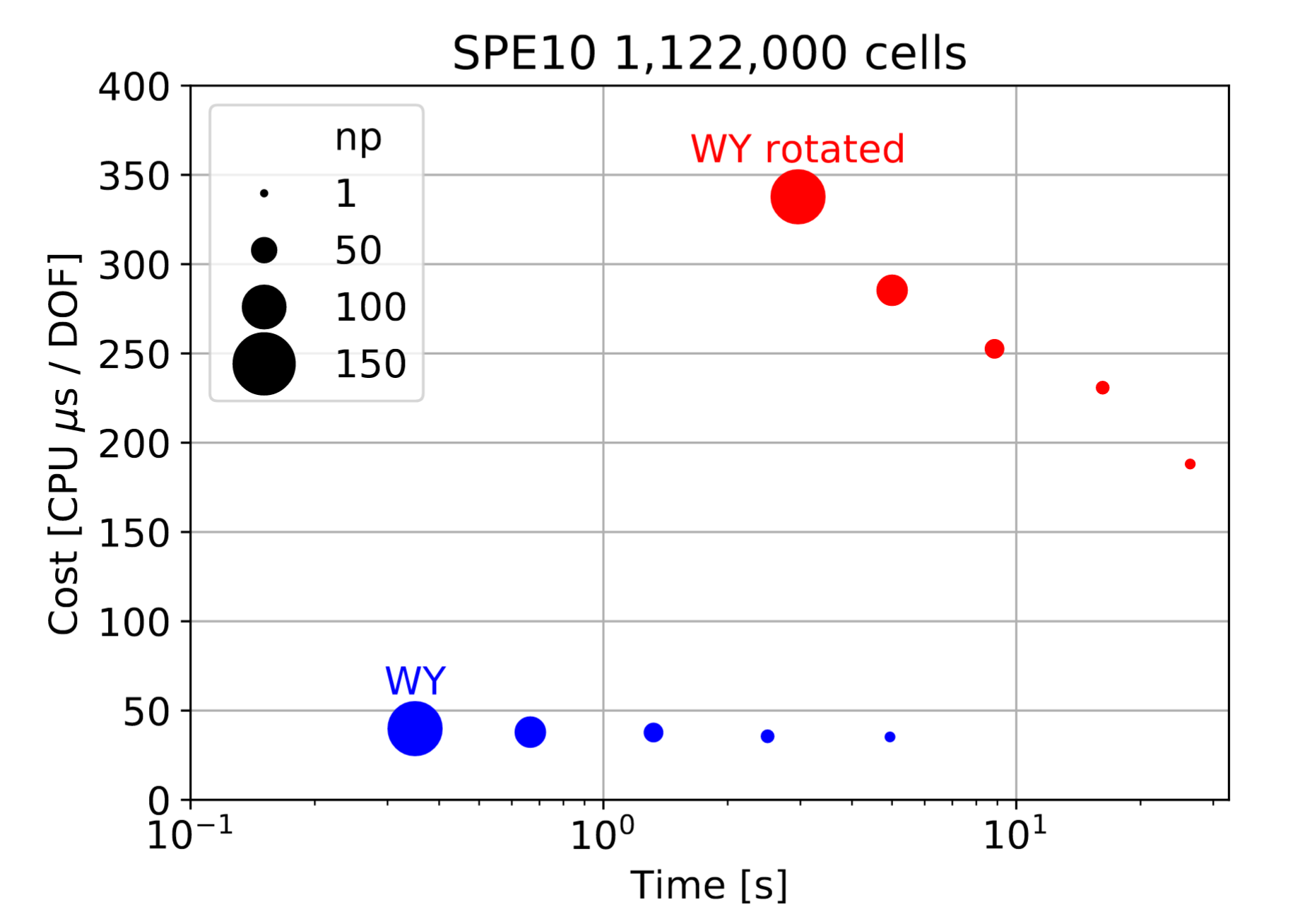

![:scale 100%](figures/tdycore/collier-wy-spe10.png)

---
# TDycore assembly

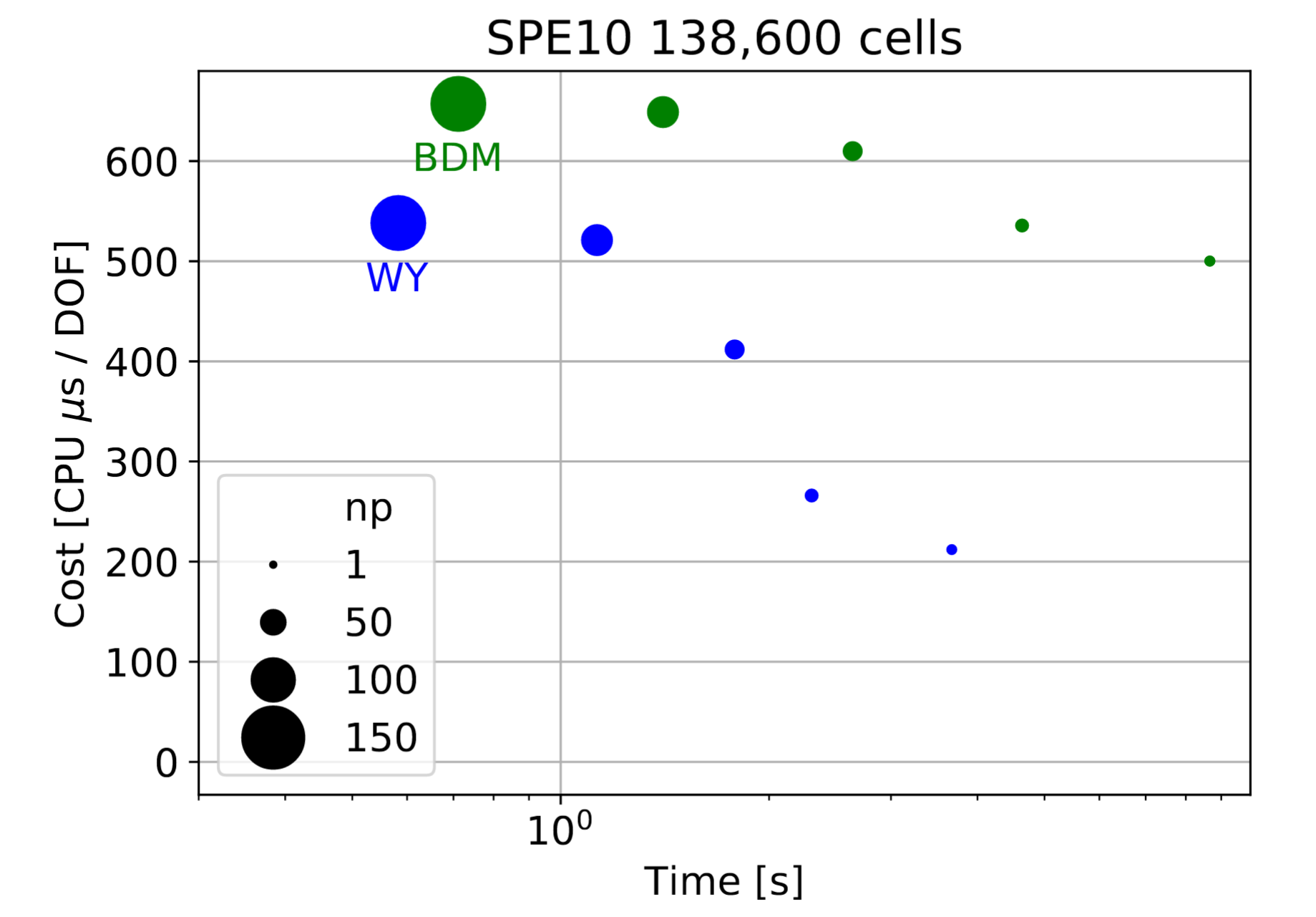

![:scale 100%](figures/tdycore/collier-wy-spe10-assembly.png)

---
# Arbogast & Correa (2016)

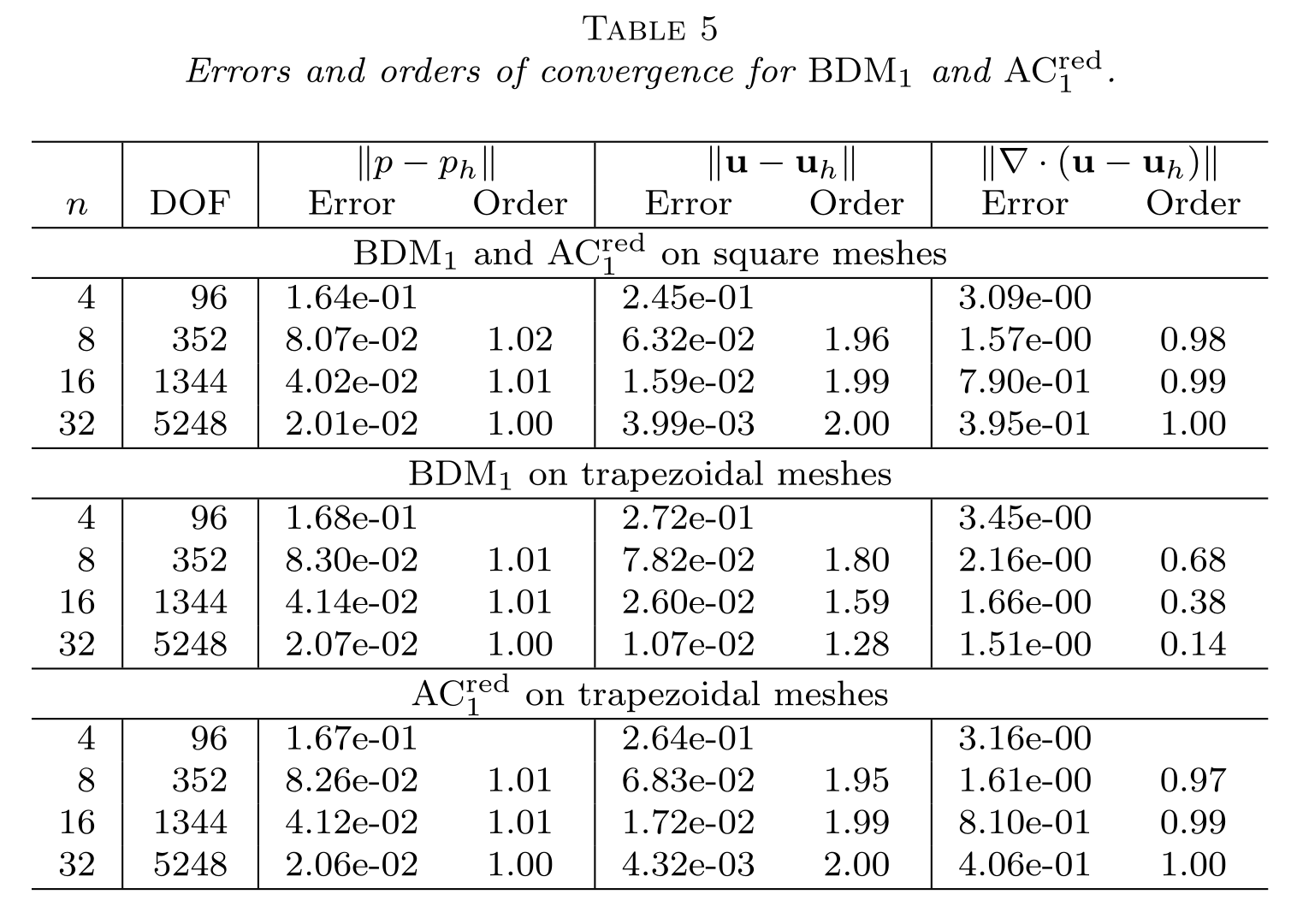

![:scale 90%](figures/tdycore/arbogast-correa-table5.png)

* Arnold-Boffi-Falk (2005): more dofs
* Collocated variant unknown,  saddle point solvers

---
# Should we trade increased solve cost for accuracy?

Suppose `$AC_1^{red}$` matches accuracy of `$BDM_1$` with
$$ h = 1.25 h_1 $$

* Half the dofs in 3D
* Allow time step `$1.25\times$` larger
* Tracers and chemistry
* May pay off in the end
  - Currently maintaining both options

---
.pull-left[
![](figures/PETSc/logos/PETSc_RBG.svg)
* IMEX integrators
* Algebraic solvers and preconditioners
* DMPlex for discretization
* Powerful run-time composition
* GPU- and node-aware communication
]
.pull-right[
![](figures/PETSc/LocalSpaces.svg)
* Assemble optimal data structures from single source code
]

---
# Outlook
* `$BDM_1$` needs `$\sim 10\times$` more memory than WY
* Wheeler-Yotov most friendly for AMG
* Saddle-point with BDDC robust, but more expensive
* `-tdy_method {wy|bdm|ac}`
* Working on vectorized assembly (cf. libCEED)
* Python/Julia plugins to come
* https://github.com/TDycores-Project/TDycore
* TDycore Team: Nathan Collier (ORNL), Gautam Bisht (PNNL), Matt Knepley (UBuffalo),
  Jenn Frederick and Glenn Hammond (SNL), Satish Karra (LANL)
* Thanks to DOE Biological and Environmental Research, SciDAC

---
# Latency and throughput are different

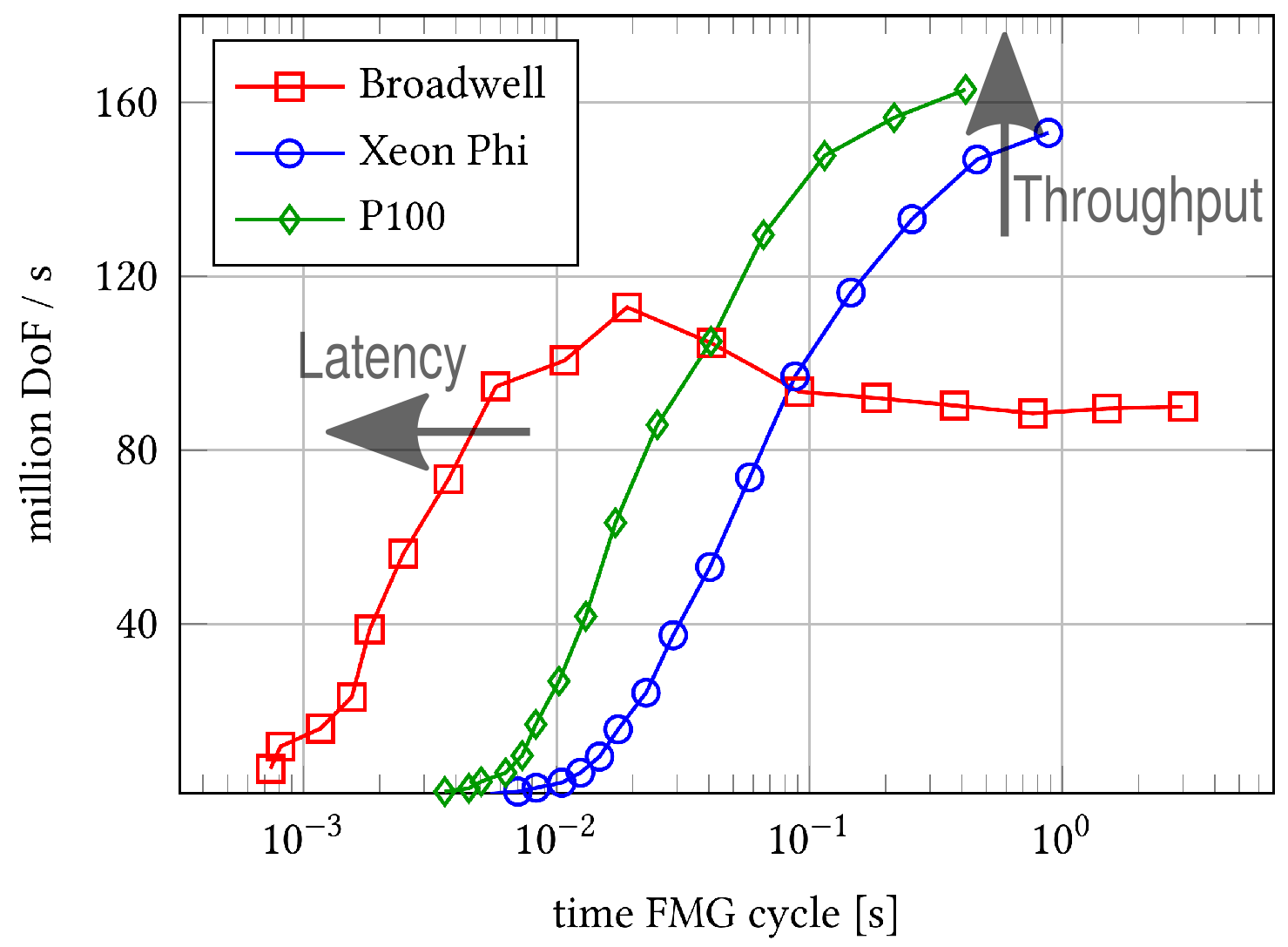

![:scale 80%](figures/Kronbichler-fig4-crop.png)

[Adapted from Kronbichler et al (2019)](https://doi.org/10.1145/3322813)

---
# [Fuhrer at al (2018)](https://www.geosci-model-dev.net/11/1665/2018/gmd-11-1665-2018.pdf)

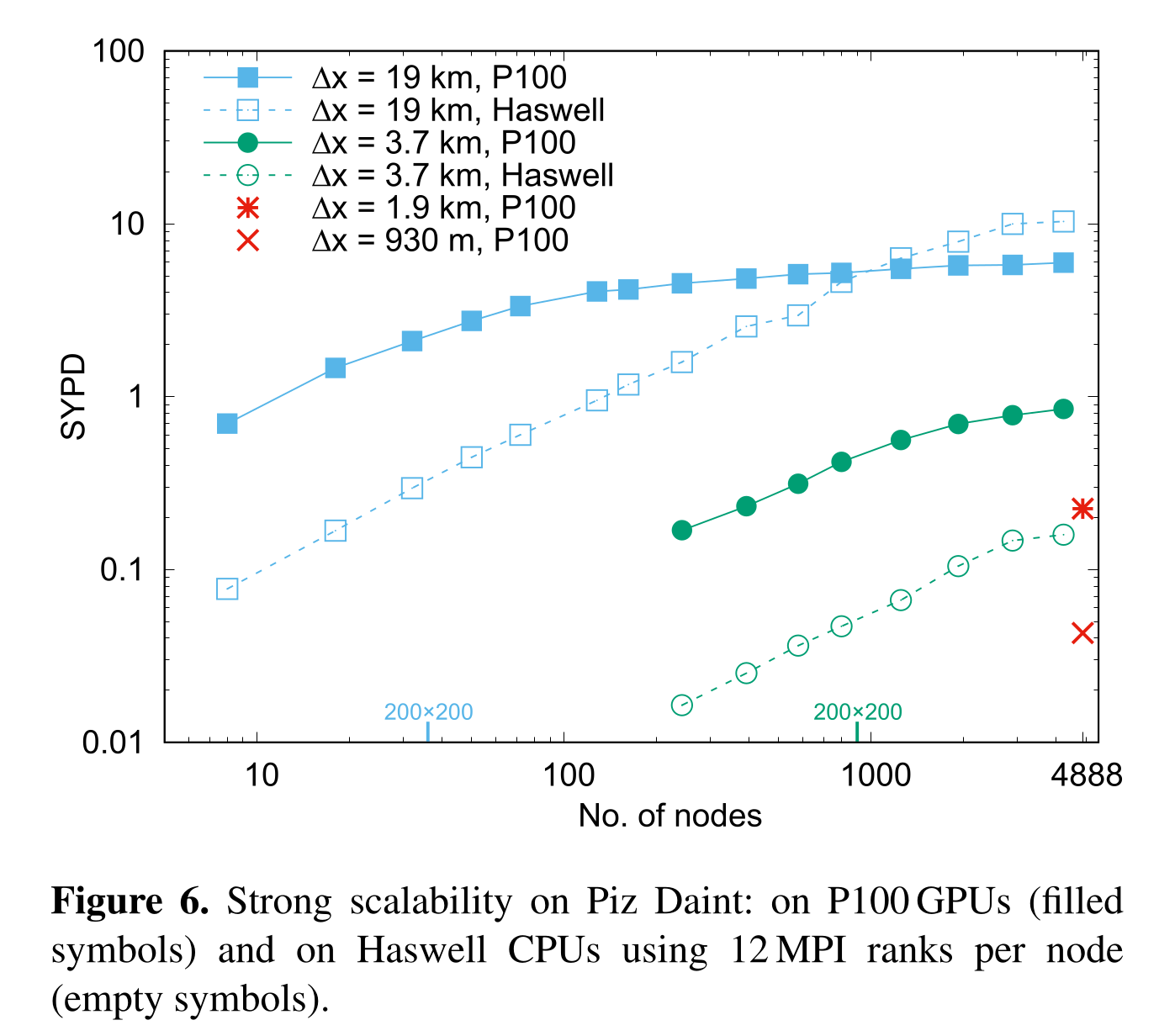

![:scale 75%](figures/fuhrer2018-fig4.png)
* Is high-resolution strong scaling?

---
# Fuhrer at al (2018) replot

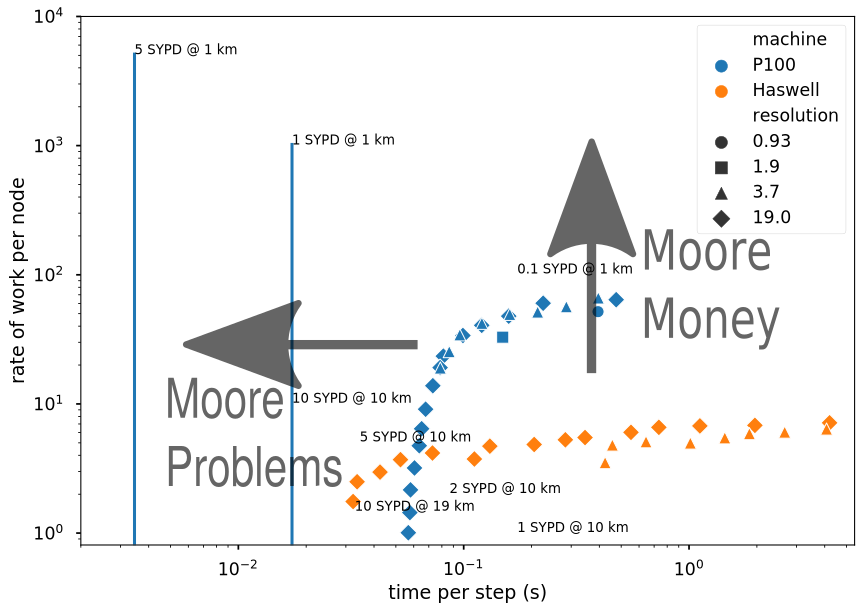

![:scale 100%](figures/fuhrer2018-scaling-time-ann4.png)

---
# New hardware does not reduce latency

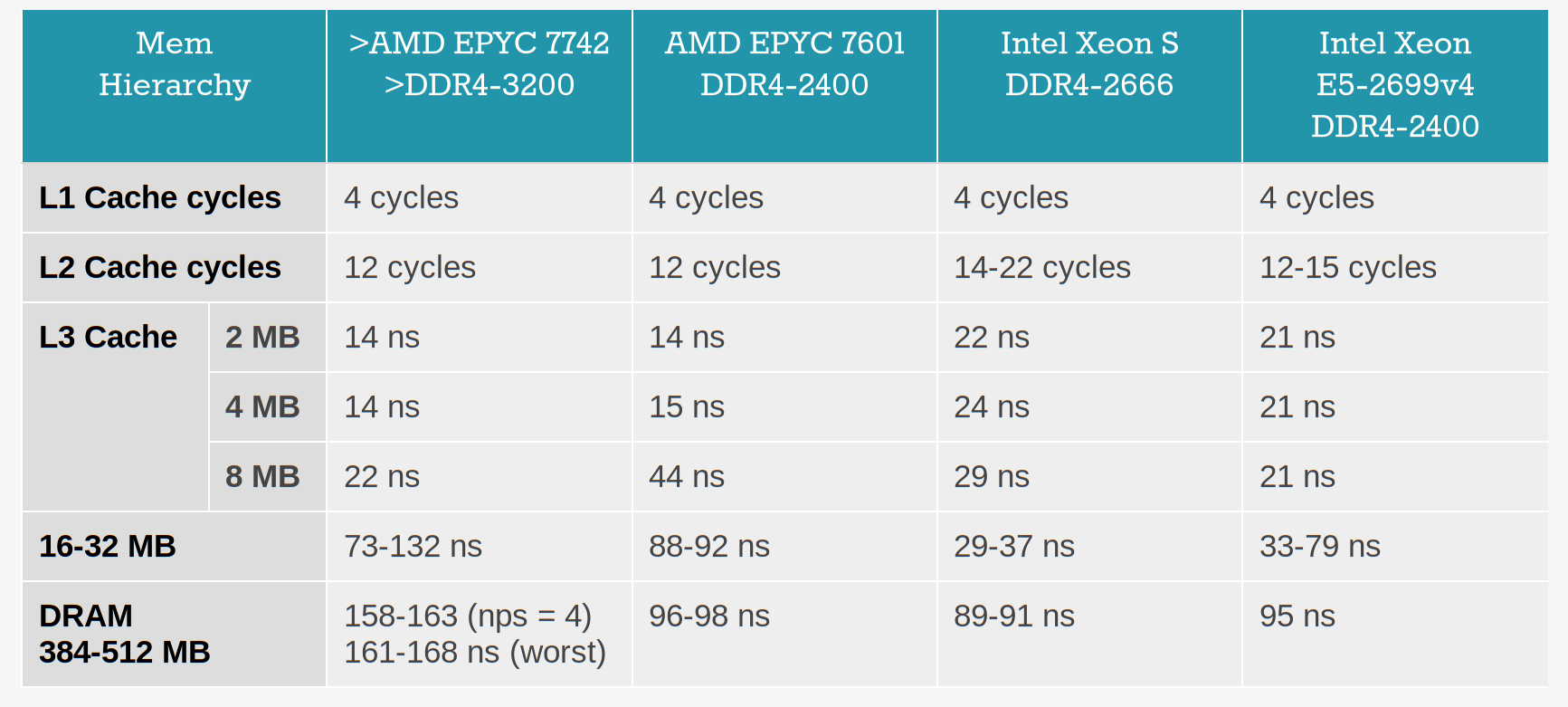

![](figures/hardware/epyc-skylake-latency.png)

.footnote[From [Anandtech](https://www.anandtech.com/show/14694/amd-rome-epyc-2nd-gen/7)]

---
# Latency bugs persist

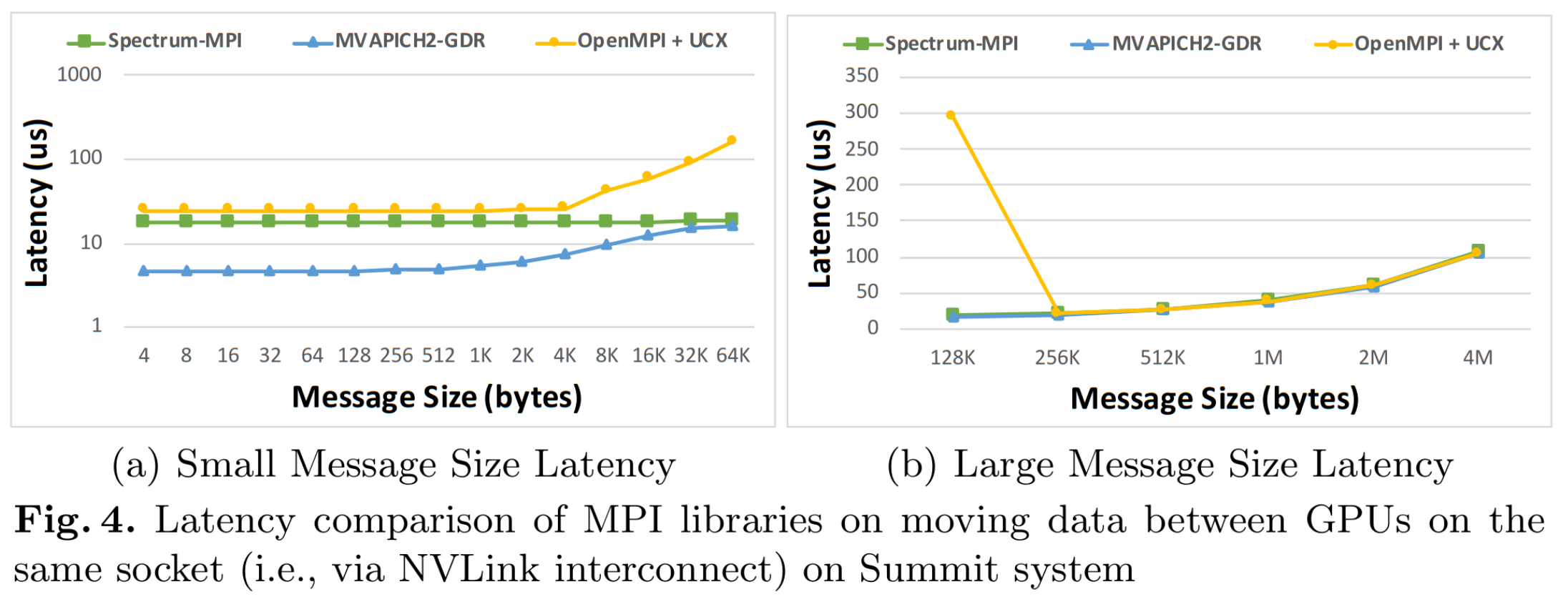

![](figures/hardware/summit-latency-mvapich-spectrum.png)

.footnote[From [Khorassani at al (2019)](http://mvapich.cse.ohio-state.edu/static/media/publications/abstract/IWOPH_19_MPI_on_POWER.pdf)]

---
# Questions?
